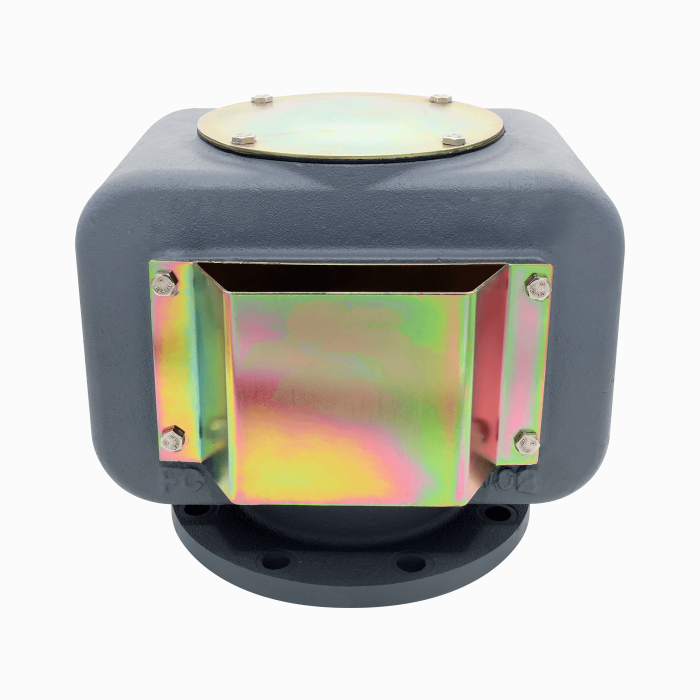

Air Vent Head – Disc Type – JIS 5K
Aboard ships for hot and cold water, fresh water, sea water, oil and steam.
Please note!
Please fill in the form below so we can send you our best offer right away!
Brand:
| Material Specification | |
|---|---|
| BODY | GG-25 |
| COVER | SUS316 |
| FILTER | SUS316 |
| SCREEN COVER | SUS316 |
| FLOAT | SUS316 |
| Technical Specification | |
|---|---|
| MODEL | JIS KS91A-121 |
| CONNECTION | JIS 5K |
| CERTIFICATION | 3.1 MILL CERTIFICATE |
| Dimensions Specification | |
|---|---|
| C | P.C.D |
| D | F.O.D |
| NO | NUMBER OF HOLES |
| HO | DIAMETER OF HOLES |
| W | WEIGHT |
Dimension Table
| CODE | DN | C | D | NO | HO | W |
|---|---|---|---|---|---|---|
| 872301 | 50 | 105 | 130 | 4 | 15 | 7.4 |
| 872302 | 65 | 130 | 155 | 4 | 15 | 12.6 |
| 872303 | 80 | 145 | 180 | 4 | 15 | 16 |
| 872304 | 100 | 165 | 200 | 8 | 19 | 23 |
| 872305 | 125 | 200 | 235 | 8 | 19 | 34 |
| 872306 | 150 | 230 | 265 | 8 | 19 | 47 |
| 872307 | 200 | 280 | 320 | 8 | 23 | 72 |
| 872308 | 250 | 345 | 385 | 12 | 23 | 120 |
| 872309 | 300 | 390 | 430 | 12 | 23 | 178 |
| 872310 | 350 | 435 | 480 | 12 | 23 | 196 |
| 872311 | 400 | 495 | 540 | 16 | 25 | 229 |
| 872312 | 450 | 605 | 555 | 16 | 25 | 285 |
